Room-level Air-cooled Precision Cooling With Small Cooling Capacity Of 6-20KW
Product Introduction
Targeting edge data center scenarios,kimoems,drawing on its extensive experience and technical expertise in the data center industry,has launched a room-level air-cooled precision air conditioning product in the 6–20 kW cooling range.
In addition to meeting basic customer needs for constant temperature and humidity in data centers, base stations, and other sites,this product also conserves installation space and maintains high reliability,offering users more choices.
It comes in a standard configuration with a wide range of optional features.
Users can customize selections based on specific needs,avoiding unnecessary components for higher flexibility.
Application Scenarios
Data centers, communication rooms, switching rooms
Base stations, small computer rooms
Financial and government outlets, etc

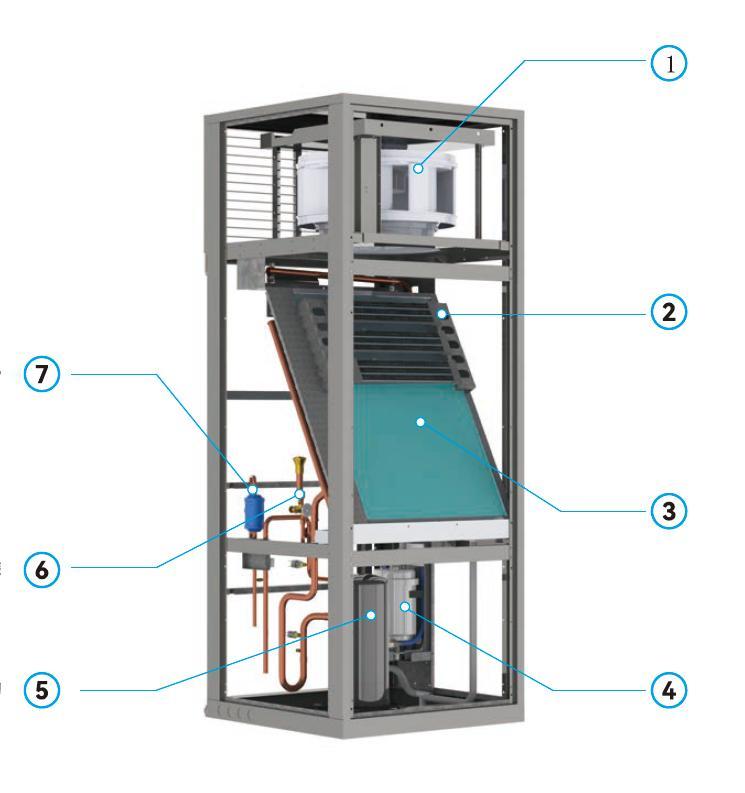

1.Centrifugal fan
2.PTC electric heating
3.Straight plate evaporator
4.Humidifier
5.Compressor
6.Thermal expansion valve
7.Dry filter KMA Series Specifications
| Model | KMA | 61 | 81 | 81 | 121 | 171 | 201 |
| Cooling Capacity |
|
|
|
|
|
|
|
| Refrigerant |
| R410A | R410A | R410A | R410A | R22/R410A | R22/R410A |
| Total Cooling Capacity (24°C-50%RH) | kW | 6.2 | 8.1 | 8.1 | 12.8 | 17/17.2 | 20/20.3 |
| Sensible Cooling (24°C-50%RH) | kW | 5.7 | 7.5 | 7.5 | 12.5 | 15.5/15.8 | 18.3/18.7 |
| Compressor |
|
|
|
|
|
|
|
| Standard Quantity | n.° | 1 | 1 | 1 | 1 | 1 | 1 |
| Rated Power | kW | 1.75 | 2.15 | 2.15 | 3.2 | 3.9 | 4.8 |
| Rated Current | A | 8.1 | 3.8 | 3.8 | 6.0 | 7.6/7.4 | 9.1/8.9 |
| Centrifugal Fan |
|
|
|
|
|
|
|
| Quantity | n.° | 1 | 1 | 1 | 1 | 1 | 1 |
| Airflow | m³/h | 1800 | 2400 | 2400 | 3900 | 5000 | 6500 |
| Pressure | Pa | 75 | 75 | 75 | 75 | 75 | 75 |
| Fan Power | kW | 0.35 | 0.25 | 0.25 | 0.5 | 0.9 | 1 |
| Humidifier (Optional) |
|
|
|
|
|
|
|
| Maximum Steam Production | kg/h | 3 | 3 | 3 | 3 | 5 | 5 |
| Rated Power | kW | 2.25 | 2.25 | 2.25 | 2.25 | 3.75 | 3.75 |
| Rated Current | A | 10.2 | 10.2 | 3.4 | 3.4 | 6 | 6 |
| Electric Heater (Optional) |
|
|
|
|
|
|
|
| Rated Power | kW | 3 | 3 | 3 | 4 | 6 | 6 |
| Stages | n.° | 1 | 1 | 1 | 1 | 1 | 1 |
| Rated Current | A | 13.6 | 13.6 | 4.5 | 6.1 | 9.1 | 9.1 |
| Dimensions and Weight |
|
|
|
|
|
|
|
| Length | mm | 600 | 600 | 600 | 600 | 750 | 750 |
| Width | mm | 570 | 570 | 570 | 570 | 750 | 750 |
| Height | mm | 1700 | 1900 | 1900 | 1900 | 1980 | 1980 |
| Weight | kg | 140 | 150 | 150 | 175 | 225 | 235 |
| Electrical Parameters |
|
|
|
|
|
|
|
| Power Supply |
|
|
|
|
|
|
|
| Full Load Current | A | 28.39-31.12 | 40 | 40 | 20.25-29.5 | 30.5 | 30.5 |
| Circuit Breaker | A | 40 | 40 | 20 | 25 | 63 | 63 |
| Indoor Unit Cable Specifications | mm² | 3*10 | 3*10 | 3*10 | 5*4 | 4*6 | 4*6 |
| Outdoor Unit Cable Specifications | mm² | 3*1.5 | 3*1.5 | 3*1.5 | 3*1.5 | 3*1.5 | 3*1.5 |
| Standard Condenser |
|
|
|
|
|
|
|
| R22 |
| RCS24 | RCS29 | RCS24 | RCS29 | RCS24 | RCS29 |
| R410 |
| RCL8A | RCL13A | RCL13A | RCL16A | RCS24A | RCS29A |
Notes
-
Outdoor Ambient Temperature: 35°C
-
Return Air Conditions: 24°C-50%RH
-
Standard Pressure and G4 Filter Configuration
-
Cable Specifications are for Reference Only. For other needs, please contact the manufacturer.
-
If the Required Data is Not Listed in the Table, Please Contact the Manufacturer.
